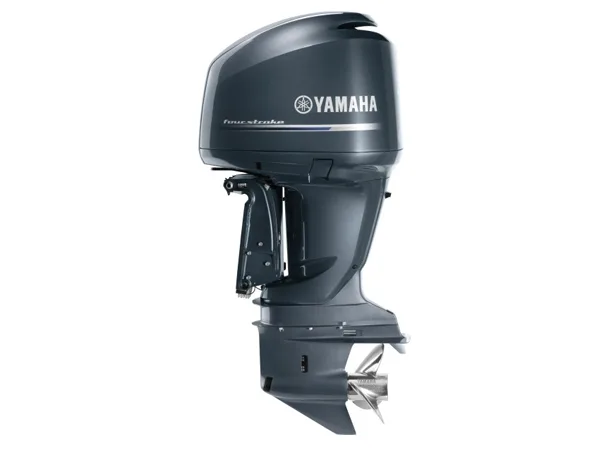

2017 Yamaha F250 3.3L Offshore XCA Outboard Motor

2017 Yamaha F250 3.3L Offshore XCA Outboard Motor

FOR THOSE WHO DEMAND LEGENDARY OFFSHORE PERFORMANCE.

Yamaha’s legendary V6 3.3L four strokes set the course for today’s offshore power. When they first hit the water, they brought with them several innovations that radically improved low-end and midrange torque, acceleration and top-end speed. This technology was so revolutionary that it garnered not only a BoatingWeek Innovation Award, but also an Editor’s Choice Award from MotorBoating Magazine.



2017 Yamaha F250 3.3L Offshore XCA Outboard Motor

Power/Performance

• Mechanically Remote-Controlled Four Stroke V6 Outboard

• Narrow 60° 3.3L Block Design

• Variable Camshaft Timing

• Long Track Induction System

• Precision Multi-Point Fuel Injection

• 6 Independent Fuel Injectors

• 4 Large Radius Valves Per Cylinder

• High Intake Valve Lift

• Double Overhead Camshafts

• In-Bank™ Exhaust

• Exhaust Pressure Reduction System

Reliability/Durability

• TCI Microcomputer

• Electronic Single Throttle Valve (65mm)

• Direct Drive System

• Sacrificial Anodes

• Forged Pistons

• Water Cooled Rectifier/Regulator

• Water Separator

• Direct Ignition

• YDC-30 Aluminum Alloy

• 5-Step Anti-Corrosion Paint Process

• Top Mounted Electrical

• High Output Alternator

• SST Drive, Prop, Shift Shafts

• SST Steering Tube

Convenience/Control

• Command Link® System

• Power Trim & Tilt

• Freshwater Flush

• Counter Rotation “LF” Model

• Yamaha Diagnostic System

• Multi-Charge Monitoring System

• Single Belt Drive System



2017 Yamaha F250 3.3L Offshore XCA Outboard Motor

Year 2017

Manufacturer Yamaha Marine

Model Name F250 3.3L Offshore

Trim Name XCA

Generic Type (Primary) Four Stroke

Engine

Engine Type 60° V6 DOHC 24-Valve

Engine Power 250hp at 5500 rpm

Alternator (Output): 44 Amp (Battery charge: 27 Amp)

Gear Ratio (Primary) (30:15) 2.00:1

Displacement 204.6 ci (3352 cc)

Lubrication Wet sump

Ignition System: TCI Micro Computer

Fuel System (Induction): EFI/VCT/DOHC

Oil Type (Recommended): Yamalube® 4M (See owner’s manual)

Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 89)

Fuel Type (Recommended Filtration): Yamaha 10-Micron Fuel/Water Separating Filter (external)

Capacities

Oil capacity 4.7L/4.5L w/without filter

Spark Plug

Spark Plug LFR6A-11-00-000

Range

Note Full Throttle RPM Range: 5000 – 6000

Dimensions

Length Shaft: X = 25″

Bore 3.70 in. (94 mm)

Stroke 3.17 in. (80 mm)

Weights

Dry Weight 276 kg (608 lb)

Features

Compression Ratio 9.9:1

Features Degree of Tilt: TBD | Degree of Trim: -3° through +16°

Note Ethanol Blend Limit: 10% Maximum

Cooling Water/Thermostatic Control

Steering Angle Maximun: 32° from center, either direction

Note Gear Shift: Forward, Neutral, Reverse

Features C.A.R.B. Rating: 3 Star

Exhaust Through Propeller

Intake Design Single Throttle Valve

Note Mounting Centers: 28.6″

Starter T = Electric w/ PTT

Warranty

Warranty 3-Year Pleasure, 3-Year Government, 1-Year Commercial
